Fixed PLX climbing anchor with 10mm lugs and 2 carabiners

The Fixe PLX climbing anchor with 10mm lugs and 2 carabiners is made of Fixe PLX steel and is therefore ideal for bolting near the sea. In the Alpine region, this steel also guarantees extreme durability. Duplex is a special alloy with very high corrosion resistance. Duplex steel / PLX STEEL also has a very high resistance to stress corrosion cracking. At Fixe Climbing, Duplex steel has been given the proper name PLX steel.

Due to the high quality, PLX drilling materials can also be used anywhere in the Alpine region! On the one hand, this makes sense close to cities, for example. On the other hand, it also makes sense wherever you want to use high-quality steel. This massively increases the service life. You can find more information in our technical article“Steel qualities at expansion bolt and glue in bolt“.

The two fixed, counter-mounted snapgate carabiner make the lower off the perfect top rope station or climbing gym lower off.

We also stock the matching PLX expansion bolt or PLX bolt hanger and PLX glue in bolt.

Features Fixed PLX climbing anchor with 12mm lugs and 2 carabiners

• Length: approx. 29cm
• breaking load 35kN
• Bracket for 10mm expansion bolt (torque of the expansion bolt 40Nm)
• Weight: 814 gram
• EN standard 959 – UIAA 123
• Perfect Top Rope Station
• Duplex steel – suitable for bolting a climbing route near the sea

Suitable expansion bolt for the Fixe PLX climbing anchor with 10mm lugs and 2 carabiners

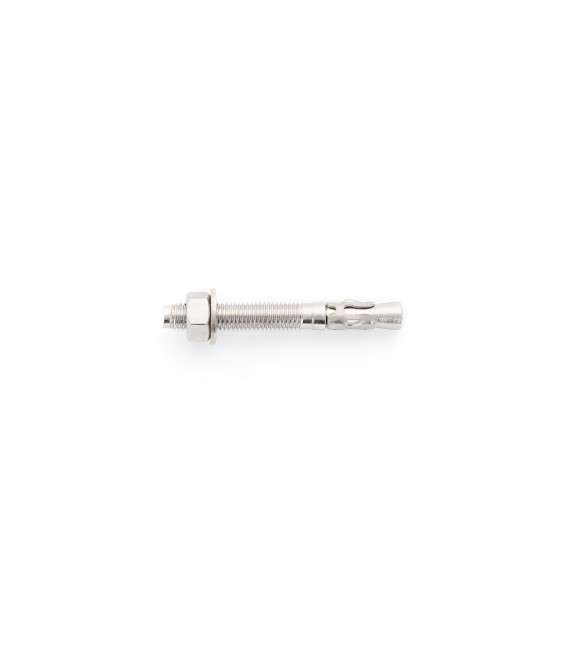

The matching expansion bolt for this Top Rope lower off are the 10mm PLX expansion bolt. These are made of the same highly corrosion-resistant duplex steel.

Please note the correct torque at expansion bolt. The PLX Bolt has a recommendation of 40Nm!

The combination with zinc plated bolt hanger or normal stainless steel bolt hanger (A4 steel) must be avoided at all costs! This creates galvanic corrosion. Not familiar with this yet? Then read our lead article “Galvanic corrosion at expansion bolt” to expand your knowledge.

Suitable for bolting near the sea!

The fixed PLX climbing anchor with 12mm lugs and 2 carabiners is ideal for bolting near the sea. The duplex steel meets the necessary corrosion class to withstand extreme chemical conditions in the medium to long term.

The following products are also perfect for bolting near the sea:

• Titanium drilling materials
• HCR steel drilling materials
• injection mortar for use near the sea

Link tip: In our Bolting Know How section there are many interesting articles about establishing a climbing route.

You can also find many more details on bolting in the 1 x 1 manual at expansion bolt!

Weight	814 g
Dimensions	27 × 3 × 3 cm
Durchmesser	12mm
Karabinerart	Keylock snapper, Wire catch
Einbohr Gewicht	heavy
Korrosionsbeständigkeit	Very high
Stahlqualität	Duplex steel / FIXE PLX
Routen Beanspruchung	Very high
